Marine Trailers

Document

We design and manufacture a wide range of jet-ski and boat trailers to cover the most common boat range up to six tons load (three axles).

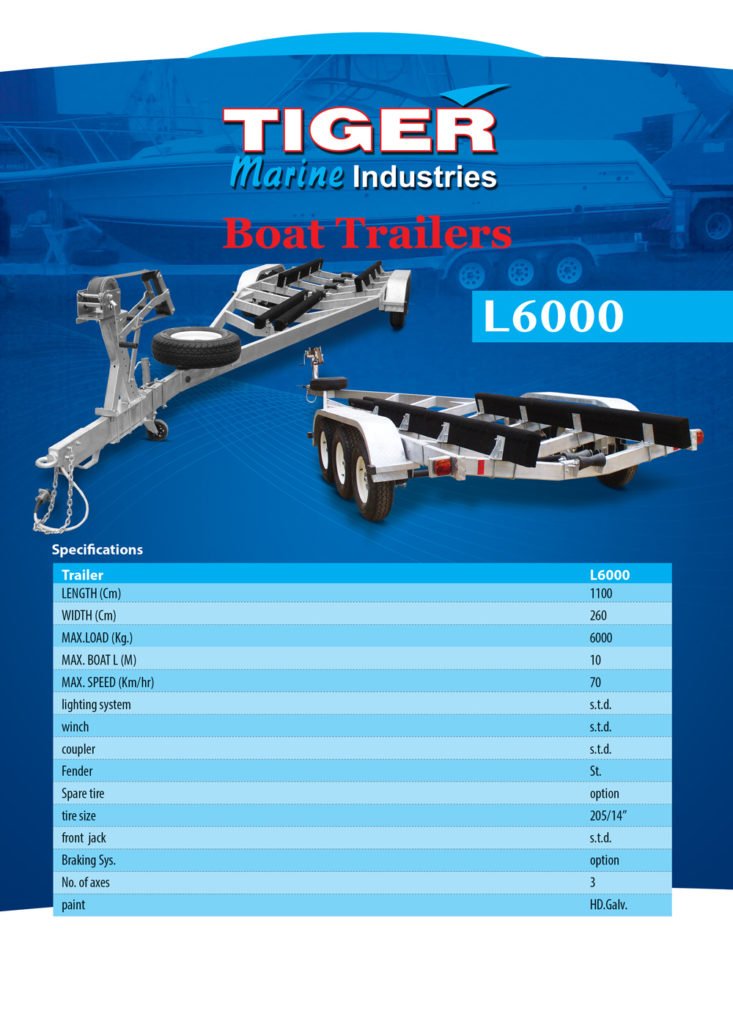

SPECS. / MODEL	L500J	L500	L750	L1000	L1000 R	L1500	L2000	L2500	L3500	L6000
LENGTH (Cm)	400	520	575	650	625	735	825	825	850	1200
WIDTH (Cm)	150	190	196	205	205	220	242	242	240	260
MAX LOAD (Kg )	500	500	750	1000	1000	1500	2000	2500	3500	6000
MAX BOAT LENGTH	4M	5 M	5.5M	6.25M	6.25M	7M	8M	8M	8.25M	12M
Max speed (Km/hr)	90	90	100	100	100	100	100	100	100	100
lighting system	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.
winch	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.
Coupler	2”	2”	2”	2”	2”	2”	2”	2”	Loop type	Loop type
Spare Tire	opt	opt	opt	opt	opt	opt	opt	opt	opt	opt
Braking Sys.	opt	opt	opt	opt	opt	opt	opt	opt	opt	opt
fenders	pl.	pl.	pl.	st.	st.	st.	st.	st.	pl./st.	st.
tire size	135/12	135/12	135/12	185/13	185/13	205/14	185/13	185/13	205/14	205/16
front jack	opt	opt	opt	opt	opt	s.t.d.	s.t.d.	s.t.d.	s.t.d.	s.t.d.
No. of axes	1	1	1	1	1	1	2	2	2	3
No. of Keel Rollers	o	o	1	4	4	4	4	4	4	4
paint	galv.	galv.	galv.	galv.	galv.	galv.	galv.	galv.	galv.	galv.

SPECS. / MODEL	T150I/IZ	T500I/IZ	T350J
LENGTH (CM)	300	400	350/400
WIDTH (CM)	140	170	150
MAX.LOAD (KG.)	150	500	350
MAX. BOAT LENGTH	3.6M	5M	4M
MAX SPEED (KM/HR)	10	30	90
LIGHTING SYSTEM	N/A	N/A	s.t.d.
WINCH	opt	s.t.d	s.t.d.
COUPLER	opt	opt	s.t.d.
SPARE TIRE	opt	opt	opt
BRAKING SYS.	N/A	N/A	N/A
FENDERS	N/A	N/A	pl.
TIRE SIZE	4.00/8″	135/12	135/12
FRONT JACK	FW	FW	opt
NO. OF AXES	1	1	1
PAINT	galv.	galv.	galv.
